G30 Proof Coil Chain NACM2010

Whether you're looking for a tailgate chain or an industrial chain, this Grade 30 Proof Coil Domestic Chain will cater to a variety of needs. It's a general utility chain for farm, industrial and home applications such as: log chain, cargo lashing, pipeline hanging, tailgate, guard rail, tow and switch chain. This Domestic chain is made from carbon steel and comes in a self-colored finish or galvanized finish. Recognized and meets or exceeds OSHA, Government, NACM, and ASTM specification requirements. Order unit is foot. NOT FOR OVERHEAD LIFTING.

Key words:

G30 Proof Coil Chain

welded chain

Classification:

Product Consulting:

E-mail:

Product Description

Inquiry

Add Products

Category:

Select all

Your Name

Your E-mail address

Inquiry Message

Submit

What are your needs?

Rizhao SAFETY Chain Co., Ltd,for many years supplies a range of industrial products that covers lifting, lashing, slings, rigging, marine, mining, towing, transportation, construction, fishing and security applications...

RIZHAO SAFETY CHAIN CO., LTD

Tel: 0086-18853221568
E-mail：sales@safetychain.cn

Add：XUMENG TOWN INDUSTRY ZONE,

WULIAN COUNTY, RIZHAO CITY, SHANDONG PROVINCE, CHINA

Business License

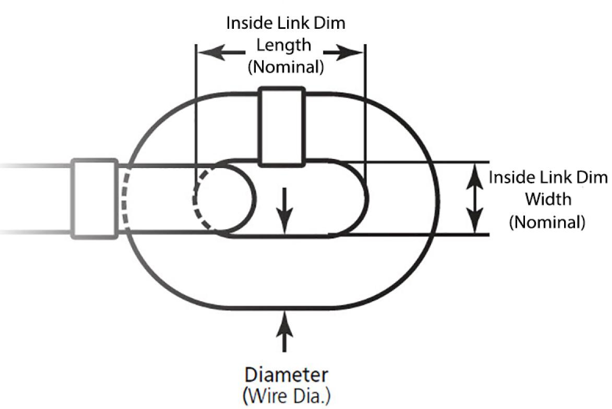

Diameter		Inside Length Max.		Inside Width Min.		Working Load Limit (Max.)		Minimum Breaking Force		Full Drum	Half Drum	Round Pail
Inch	mm	Inch	mm	Inch	mm	lbs	kg	lbs	kn	ft	ft	ft
1/8"	4	0.94	23.9	0.25	6.4	400	180	1600	7.2	-	1000	500
3/16"	5.5	0.98	24.8	0.3	7.7	800	365	3200	14.4	1600	800	250
1/4"	7	1.24	31.5	0.38	9.8	1300	580	5200	23.2	800	400	141
5/16"	8.4	1.29	32.8	0.44	11.2	1900	860	7600	33.8	550	275	92
3/8"	10	1.38	35	0.55	14	2650	1200	10600	47.2	400	200	63
1/2"	13	1.79	45.5	0.72	18.2	4500	2030	18000	80	200	100	37
5/8"	16	2.2	56	0.79	20	6900	3130	27600	122.6	150	-	-
3/4"	20	2.76	70	0.98	25	10600	4800	42400	188.6	100	-	-
7/8"	22	3.03	77	1.08	27.5	12800	5810	51200	228.2	-	-	-
1"	26	3.58	90.9	1.25	31.7	17900	8140	71600	318.2	-	-	-
